Custom NC-YB401B Hydraulic Oil Pump Motor

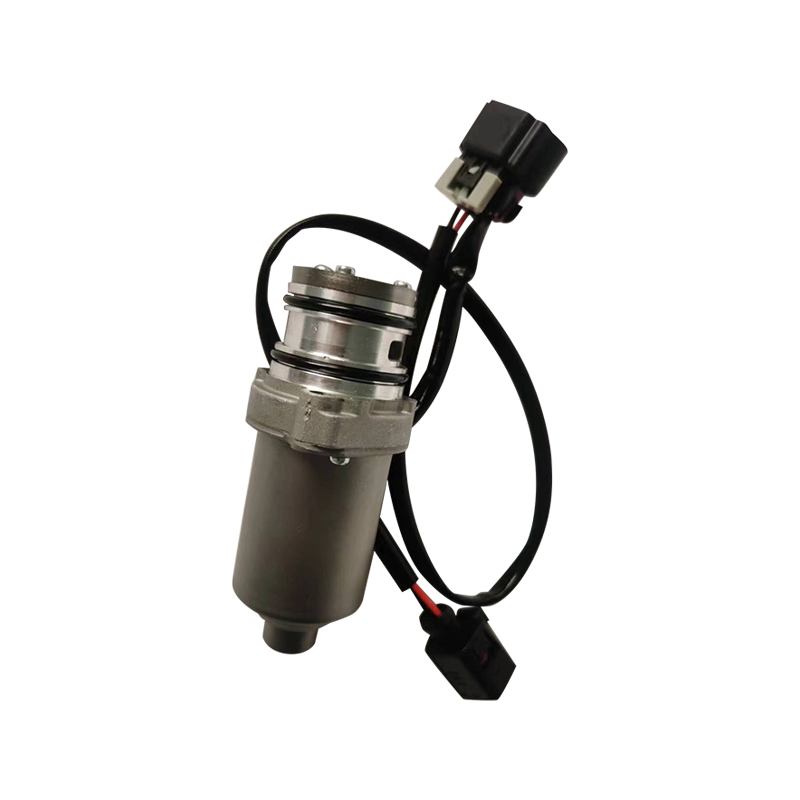

NC-YB401B Hydraulic Oil Pump Motor
Factory model:

NC-YB401B Hydraulic Oil Pump Motor

Current Type

 DC

Motor Type

 Permanent magnet brushed motor

Applicable Products

 Hydraulic pump, Hydraulic system

Used for

 forklifts, lifting platforms, tail lifts, medical beds

Contact Us
  • NC-YB401B Hydraulic Oil Pump Motor
  • Details
  • Inquire

Technical Requirements:
1. Smooth surface, sprayed with powdered resin paint, bright without pitting, scratches or dents;
2. Rated voltage DC 12V, rated speed 3400RPM, rated input power 300W;
3. No-load current 3.5A, no-load speed 3450RPM, no abnormal noise when the motor is running, no jamming, measured one meter away from the center of the motor, the noise is no more than 55dB, running at rated power, the temperature rise is no more than 60K;
4. From the shaft extension end, the rotation direction of the motor is CW;

Description:
The NC-YB401B Hydraulic Oil Pump Motor is a high-performance component specifically engineered to drive hydraulic pumps in various applications. With its cutting-edge design and reliable operation, this motor excels in powering hydraulic systems used in forklifts, lifting platforms, tail lifts, and medical beds.

1. Current Type
The NC-YB401B operates on Direct Current (DC), which offers several advantages over Alternating Current (AC) motors:

Enhanced Efficiency: DC motors are known for their high efficiency in converting electrical energy into mechanical power. This results in improved performance and reduced energy consumption, making the NC-YB401B an economical choice for hydraulic systems.
Precise Control: DC motors provide precise control of speed and torque, essential for applications requiring accurate and adjustable power output. This characteristic is particularly beneficial in hydraulic systems where variable load conditions are common.
Compact Design: DC motors generally have a more compact and lightweight design compared to their AC counterparts. This makes the NC-YB401B ideal for applications with space constraints, such as medical beds and portable lifting equipment.

2. Permanent Magnet Brushed Motor
The NC-YB401B utilizes a permanent magnet brushed motor configuration, which contributes to its outstanding performance characteristics:

High Torque Density: Permanent magnet brushed motors are known for their high torque output relative to their size. This feature ensures that the NC-YB401B delivers substantial power to the hydraulic pump, facilitating efficient operation even under heavy loads.
Reliability and Durability: The use of permanent magnets enhances the motor's reliability and longevity. The NC-YB401B is designed to withstand the demanding conditions of hydraulic systems, providing consistent performance over an extended service life.
Maintenance Considerations: While brushed motors require periodic maintenance due to brush wear, they are generally easier to service compared to brushless motors. This aspect simplifies maintenance tasks and reduces downtime, ensuring that the hydraulic systems remain operational with fewer interruptions.

3. Applications
The NC-YB401B is specifically designed for hydraulic pumps and systems, making it a versatile choice for various hydraulic applications:

Forklifts: In forklifts, the NC-YB401B powers the hydraulic pump that controls the lifting and tilting functions, ensuring smooth and reliable operation. The motor's efficiency and compact design contribute to the overall performance and maneuverability of the forklift.
Lifting Platforms: The motor's high torque output is ideal for lifting platforms that require consistent and powerful hydraulic force. Whether used in industrial settings or construction sites, the NC-YB401B ensures the lifting platform operates safely and efficiently.
Tail Lifts: For tail lifts in commercial vehicles, the NC-YB401B provides the necessary hydraulic power to facilitate smooth and reliable loading and unloading processes. Its durable design ensures it can handle the stresses associated with frequent use.
Medical Beds: In medical beds, the NC-YB401B drives the hydraulic system that adjusts the bed's position, providing patients with comfort and ease of use. The motor's quiet operation and precise control enhance the overall functionality and patient experience.
