Custom NC-YB401A DC Brush Oil Pump Motor

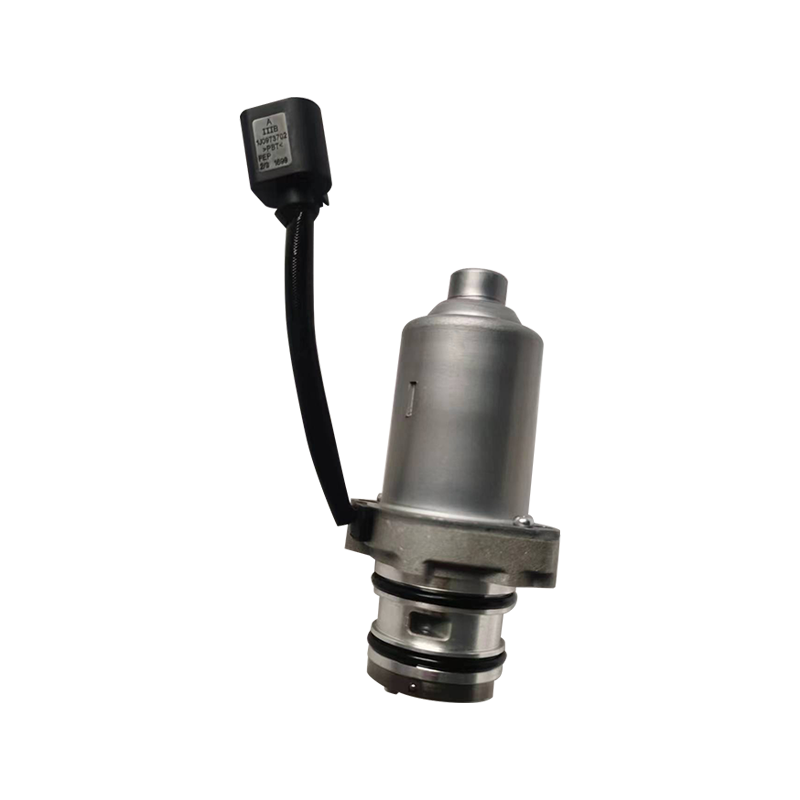

NC-YB401A DC Brush Oil Pump Motor
Factory model:

NC-YB401A DC Brush Oil Pump Motor

Current Type

 DC

Motor Type

 Permanent magnet brushed motor

Applicable Products

 Hydraulic pump, Hydraulic system

Used for

 Forklifts, lifting platforms, tail lifts, medical beds

Contact Us
  • NC-YB401A DC Brush Oil Pump Motor
  • Details
  • Inquire

Technical Requirements:
1. Smooth surface, sprayed with powdered resin paint, bright without pitting, scratches or dents;
2. Rated voltage DC 12V, rated speed 3400RPM, rated input power 300W;
3. No-load current 3.5A, no-load speed 3450RPM, no abnormal noise when the motor is running, no jamming, measured one meter away from the center of the motor, the noise is no more than 55dB, running at rated power, the temperature rise is no more than 60K;
4. From the shaft extension end, the rotation direction of the motor is CW;

Description:
The NC-YB401A DC Brush Oil Pump Motor is a high-performance component specifically engineered to meet the demanding needs of hydraulic applications. Featuring a permanent magnet brushed motor design, this motor is well-suited for various machinery.

1. Motor Type and Design
Permanent Magnet Brushed Motor: The NC-YB401A employs a permanent magnet brushed motor configuration. This type of motor integrates permanent magnets to create a steady magnetic field, which enhances efficiency and reliability. The brushed design includes brushes that maintain electrical contact with the rotating commutator, ensuring consistent performance and ease of operation.

Durability and Robustness: Designed for demanding environments, the motor’s construction emphasizes durability and robustness. The use of high-quality materials and precision engineering ensures that the NC-YB401A withstands the rigorous conditions typically encountered in hydraulic systems.

2. Performance and Efficiency
High Efficiency: The motor delivers impressive efficiency, crucial for optimizing hydraulic system performance. By utilizing permanent magnets, the NC-YB401A reduces energy losses and maximizes power output, resulting in a more efficient hydraulic operation.

Reliable Operation: With a focus on reliability, the NC-YB401A provides consistent performance even under heavy loads. The motor’s design ensures stable operation, reducing the risk of system failures and extending the lifespan of the hydraulic pump and associated components.

3. Applications
Hydraulic Pump Systems: The NC-YB401A is specifically designed for hydraulic pump systems. Its high efficiency and reliability make it an ideal choice for powering hydraulic pumps, which are essential for various industrial and commercial applications.

Forklifts and Lifting Platforms: In forklifts and lifting platforms, the motor plays a crucial role in operating hydraulic systems that facilitate lifting and lowering mechanisms. Its performance ensures smooth and efficient operation, enhancing the functionality of these machines.

Tail Lifts: For tail lifts, the NC-YB401A provides the necessary power to operate hydraulic systems that assist in raising and lowering cargo. Its robust design ensures dependable operation, contributing to the efficiency of logistics and transportation processes.

Medical Beds: The motor is also suitable for medical beds, where precise and reliable hydraulic operation is essential. It powers the mechanisms that adjust the position of the bed, providing comfort and convenience for patients.

4. Advantages
Compact Size: The NC-YB401A features a compact design, making it easy to integrate into various hydraulic systems. Its small footprint does not compromise performance, allowing for space-efficient installations.

Low Maintenance: With its brushed motor design, the NC-YB401A requires fewer maintenance compared to other motor types. The durability of the permanent magnets and the efficiency of the brushed configuration contribute to reduced upkeep requirements.

5. Technical Specifications
Voltage and Power Ratings: The NC-YB401A operates within specified voltage ranges and power ratings, ensuring compatibility with various hydraulic systems. Its performance metrics align with industry standards, delivering the power necessary for effective operation.

Temperature Tolerance: The motor is designed to operate efficiently across a range of temperatures, making it suitable for diverse environments. Its thermal resilience ensures consistent performance in varying conditions.

Safety Features: Safety is a priority in the design of the NC-YB401A. It incorporates features to protect against overcurrent and overheating, safeguarding both the motor and the connected hydraulic systems.
