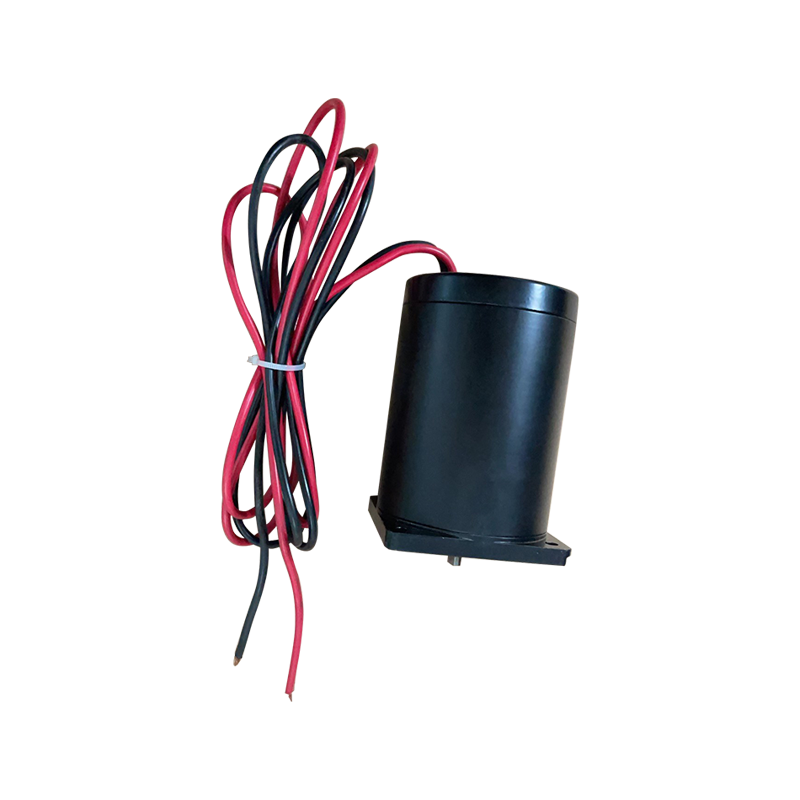

NC-YB701 DC Oil Pump Motor For Vehicle Tailboard Forklift

Technical Requirements:
1. Smooth surface, sprayed with powdered resin paint, bright without pitting, scratches or dents;
2. Rated voltage DC 12V, rated speed 3400RPM, rated input power 300W;
3. No-load current 3.5A, no-load speed 3450RPM, no abnormal noise when the motor is running, no jamming, measured one meter away from the center of the motor, the noise is no more than 55dB, running at rated power, the temperature rise is no more than 60K;
4. From the shaft extension end, the rotation direction of the motor is CW;

Description:
The NC-YB701 DC Oil Pump Motor is engineered to meet the rigorous demands of hydraulic systems in various applications, including forklifts, lifting platforms, tail lifts, and medical beds. This high-performance motor is distinguished by its DC current type and permanent magnet brushed motor design, ensuring reliability and efficiency in operations where hydraulic power is crucial.

Advantages
Reliable Performance
Consistent Power Output: The DC oil pump motor delivers consistent power, which is critical for maintaining the operational efficiency of hydraulic systems. This reliability ensures that the equipment performs optimally even under demanding conditions.
High Load Capacity: Designed to handle high loads, the NC-YB701 is well-suited for heavy-duty applications where robust performance is required.

Energy Efficiency
Reduced Power Consumption: The efficiency of the permanent magnet brushed motor design leads to lower power consumption, making the NC-YB701 a cost-effective solution for hydraulic applications.
Optimized Energy Use: By reducing energy loss, this motor contributes to overall energy savings and lower operational costs.

Durability and Maintenance
Robust Construction: Built to withstand harsh conditions, the NC-YB701 features a robust construction that enhances its durability. This makes it a reliable choice for challenging environments.
Ease of Maintenance: The design of the motor simplifies maintenance tasks, reducing the need for frequent servicing and extending the motor’s operational life.

Versatility and Adaptability
Broad Compatibility: The NC-YB701's compatibility with various hydraulic systems and applications makes it a versatile choice for different industries. Its adaptability to different types of equipment ensures that it can be used effectively in diverse settings.
Customizable Options: Depending on specific requirements, the motor can be customized to meet particular needs, offering flexibility in application.

Safety Features
Overload Protection: The NC-YB701 is designed with built-in safety features to prevent damage from overload conditions. This protection mechanism ensures that the motor can handle high-demand situations without risking failure, enhancing the safety of the equipment and the operator.
Thermal Management: Equipped with efficient thermal management systems, the motor maintains optimal operating temperatures, preventing overheating and ensuring reliable performance under continuous use.

Ease of Integration
Flexible Mounting Options: The motor’s design includes various mounting options, making it easy to integrate into different hydraulic systems and equipment configurations. This flexibility simplifies installation and adaptation to existing systems.
Compatibility with Controls: The NC-YB701 is compatible with a range of control systems, allowing for seamless integration with various hydraulic control mechanisms. This compatibility ensures that the motor can be effectively controlled and monitored as part of a larger hydraulic system.

Environmental Considerations
Low Noise Operation: The motor operates with fewer noise, contributing to a quieter working environment. This feature is particularly beneficial in settings where noise reduction is essential, such as medical facilities or indoor workplaces.
Eco-Friendly Design: The NC-YB701’s energy-efficient operation helps reduce the environmental impact by lowering power consumption and emissions. This eco-friendly design supports sustainability efforts and aligns with modern environmental standards.
