Custom NC-1012 Big Power Roller Garage Door Motor With Gear Box

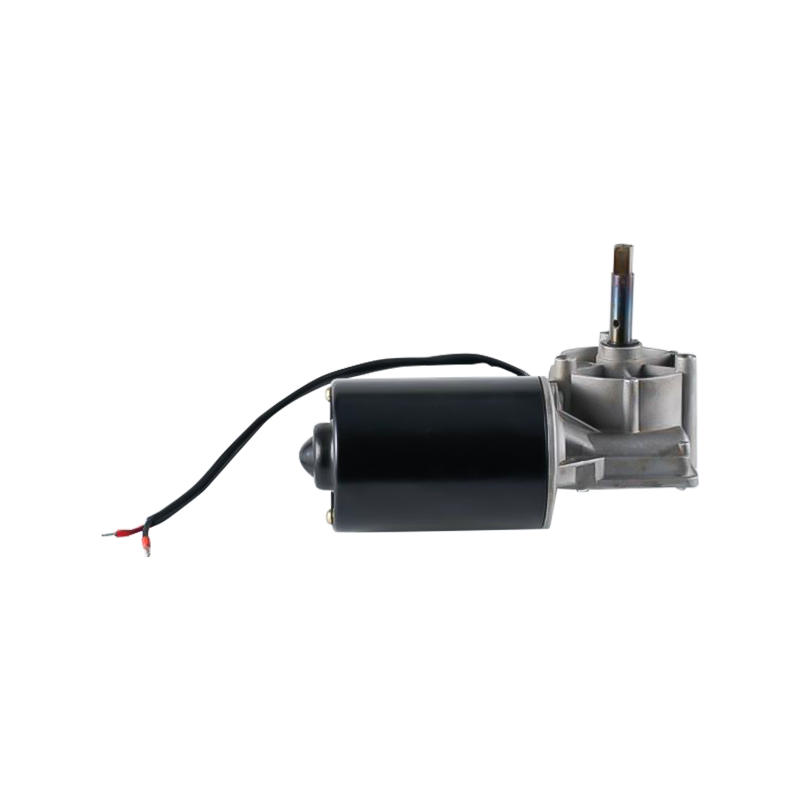

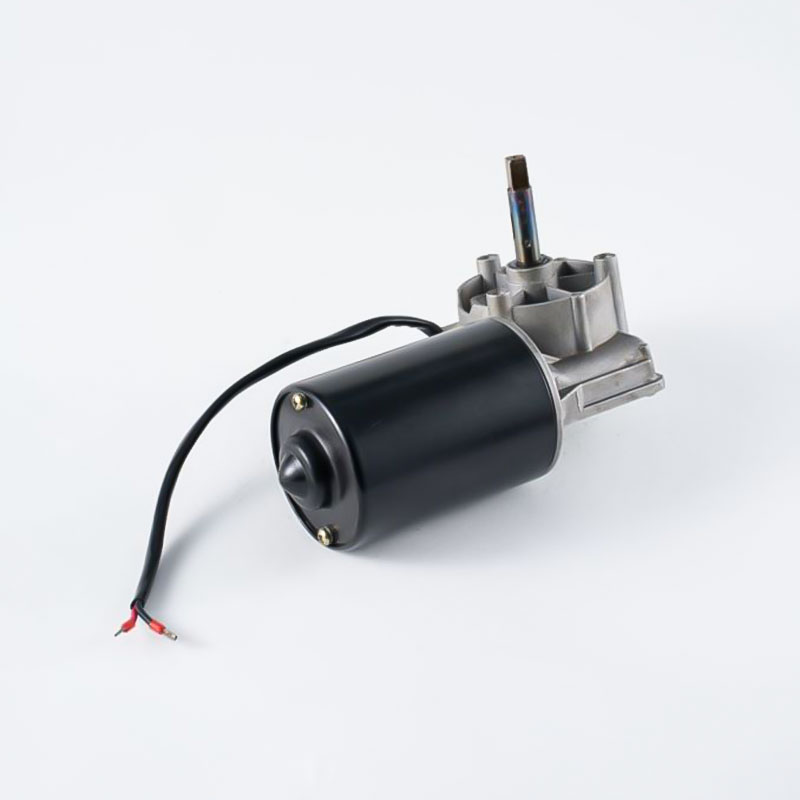

NC-1012 Big Power Roller Garage Door Motor With Gear Box
Factory model:

NC-1012 Big Power Roller Garage Door Motor With Gear Box

Type

 Brush

Voltage

 12VDC

Power

 50W

No-load Speed

 30rpm

No-load Current

 1.5A

On-load Speed

 25rpm

On-load Current

 6.0A

Stall torque

 45Nm

Gear material

 Bronze

Protection class

 IP44

Weight

3.0kg

Contact Us
  • NC-1012 Big Power Roller Garage Door Motor With Gear Box
  • NC-1012 Big Power Roller Garage Door Motor With Gear Box
  • Details
  • Inquire

Description:
The NC-1012 Big Power Roller Garage Door Motor with Gear Box is an advanced motorized solution designed for roller shutter doors, particularly in residential, commercial, and industrial applications. Roller shutters are increasingly popular for their practicality, security features, and versatility, making them a preferred choice for many environments.

Overview of Roller Shutter Technology
A roller shutter or garage door consists of multiple horizontal slats or panels that are hinged together. This design allows the door to be easily raised to open and lowered to close, making it user-friendly. For larger doors, the inclusion of a motorized system significantly enhances usability, allowing for effortless operation with just a press of a button.

The NC-1012 model features a powerful motor coupled with a high-performance gear box, enabling it to manage heavy-duty applications while ensuring smooth and silent operation. This motor is particularly beneficial in environments where frequent door access is necessary, such as warehouses, garages, and commercial spaces.

Key Features of the NC-1012 Motor
Powerful Performance: The NC-1012 motor is engineered to deliver high torque, enabling it to lift and lower heavy roller doors with ease. This makes it suitable for both residential and commercial applications, accommodating various door sizes and weights.

Durability: Constructed with high-quality materials, the NC-1012 motor is designed to withstand harsh environmental conditions. Whether exposed to extreme temperatures or moisture, the motor maintains optimal performance and longevity.

Gear Box Design: The integrated gear box is specifically designed to provide efficient power transmission, enhancing the overall functionality of the motor. This gear system ensures minimal energy loss, maximizing the motor's output and extending its operational life.

User-Friendly Operation: With the NC-1012, users can enjoy the convenience of remote-controlled operation. This feature allows for easy access, eliminating the need for manual lifting and enhancing the overall user experience.

Safety Mechanisms: Safety is paramount in any automated system. The NC-1012 motor includes several safety features, such as automatic reverse functionality when encountering obstructions, ensuring user safety and preventing damage to the door and surrounding areas.

Quiet Operation: One of the standout features of the NC-1012 is its whisper-quiet operation. This is particularly beneficial in residential settings where noise pollution can be a concern, allowing for seamless entry and exit without disturbing the peace.

Versatile Applications: The NC-1012 motor is suitable for various applications, including residential garages, commercial warehouses, schools, and industrial facilities. Its adaptability makes it a versatile choice for any location requiring roller shutter functionality.

Applications of Roller Shutters
Roller shutters serve numerous purposes across different sectors. In residential settings, they provide an additional layer of security and insulation, protecting homes from burglary attempts and adverse weather conditions. The NC-1012 motor is ideal for garage doors, offering homeowners the convenience of remote operation while enhancing security.

In commercial environments, roller shutters are used in kitchens, schools, and warehouses. They act as barriers against unauthorized access, protecting valuable equipment and inventory. Additionally, local governments in some regions subsidize roller shutters due to their inherent security benefits, making them an attractive investment for businesses looking to safeguard their assets.

In areas prone to inclement weather, roller shutters serve as insulation and protection against hail and wind damage. The NC-1012 motor, with its robust design, ensures that the shutters can withstand harsh conditions while remaining functional.
