Home / Product / Door Motor / 4008 Brushless DC Sliding Door Round Motor

Custom 4008 Brushless DC Sliding Door Round Motor

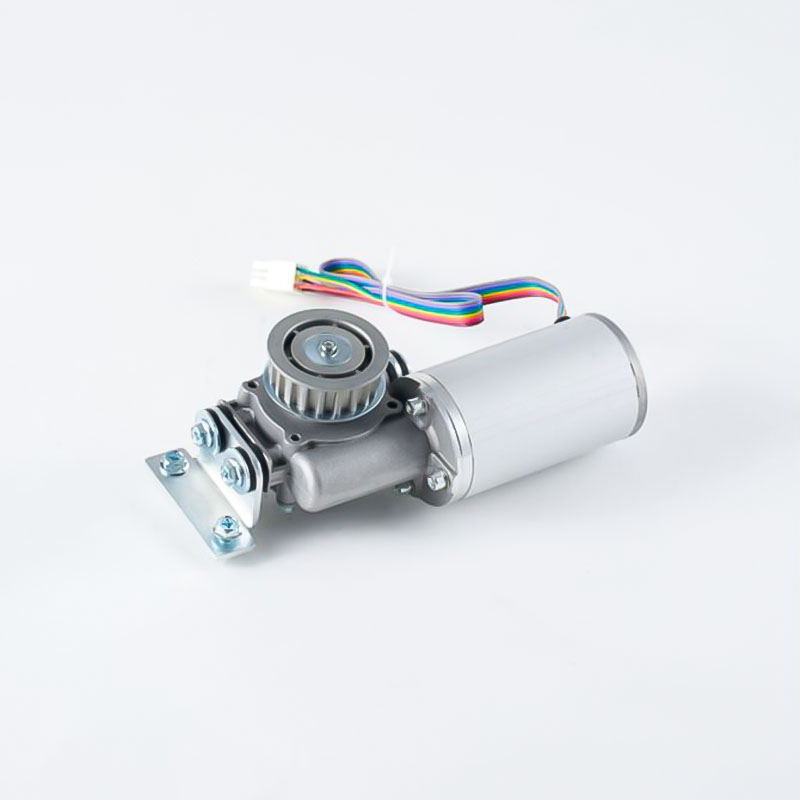

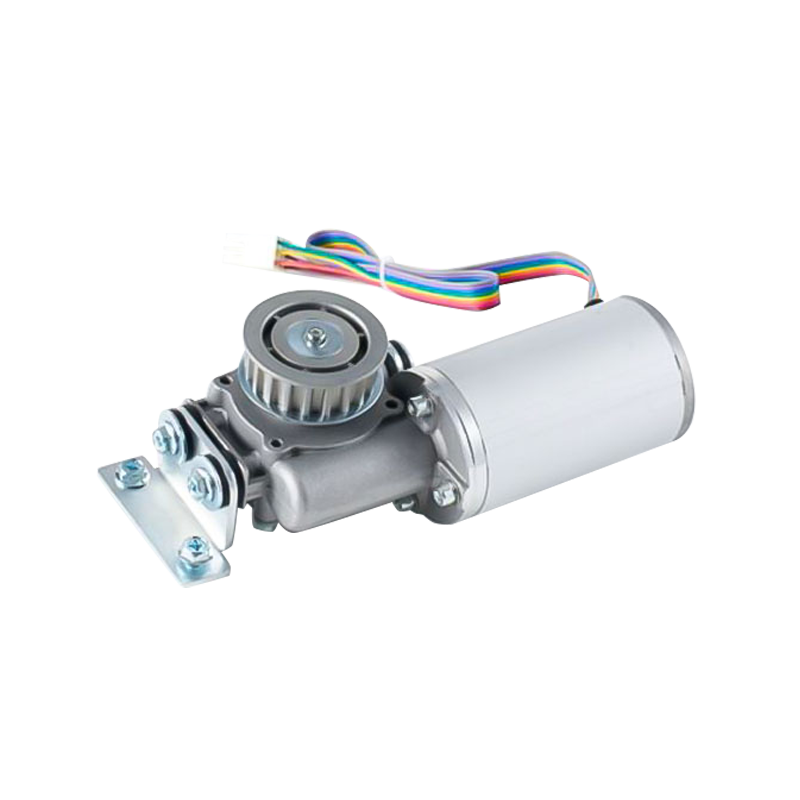

4008 Brushless DC Sliding Door Round Motor
Factory model:

4008 Brushless DC Sliding Door Round Motor

Rated Voltage

 24V DC

Rated Power

 75W

Rated Speed

 120rpm

No-load Speed

 150rpm

Reduction Ratio

 15:1

Protection Level

 IP44

Motor Noise

 ≦55dB

Contact Us
  • 4008 Brushless DC Sliding Door Round Motor
  • 4008 Brushless DC Sliding Door Round Motor
  • Details
  • Inquire

Overview:
Brushless DC motor, small size, high power, high transmission efficiency, long service life, low operating noise, stable rotation speed and torque.
Suitable for automatic sliding doors, single door load-bearing 250kg × 1 leaf, double door load-bearing 150kg × 2 leaves.

Features:
1. Brushless DC motor, small size, high power, low operating noise
2. Lightweight, good shock absorption, aging resistance, low-temperature resistance, etc.
3. Worm gear transmission, high transmission efficiency, large output torque
4. With Hall signal output, precise control, using Japanese imported JST nine-hole terminal
5. Zinc alloy synchronous wheel output, effectively reducing rolling friction noise during operation
6. Easy to install, safe and convenient, small size, equipped with mounting bracket

Description:
The 4008 Brushless DC Sliding Door Round Motor is a state-of-the-art solution for automatic door systems, specifically designed to enhance the efficiency, longevity, and safety of various automatic door applications. The system integrates advanced micro-computer optimization and brushless motor technology to provide reliable, high-performance service across a wide range of door types and commercial environments.

Competitive Advantages:
1. Courtesy Light
The motor comes with a built-in courtesy light that automatically turns on when the door is in use. It remains lit for approximately three minutes before shutting off automatically, enhancing visibility and safety.

2. Automatic Safety Reverse
The motor is equipped with an automatic safety reverse function, which senses obstructions in the door's path and reverses the door's movement to prevent accidents or damage.

3. Safe and Secure Operation
The system is equipped with high-security rolling code transmitters, offering enhanced safety and security. Two remote controls are supplied with the unit.

4. Manual Override Feature
In case of a power failure, the motor can be easily disengaged for manual door operation, ensuring the door can still function even when the system is down.

Key Features:
1. Microcomputer Optimized Control
The entire automatic door system is driven by microcomputer optimization, enabling precise control over various settings. These include:

Door leaf position setting and adjustment
Slide distance setting and adjustment
Opening and closing speed adjustment
This results in accurate and smooth operation tailored to the specific needs of each door application.

2. Powerful Brushless Motor
The brushless motor at the heart of the system ensures silent operation, extended lifespan, and high efficiency. With big torque and reliable performance, this motor is capable of handling large and heavy doors with ease.

3. Integrated Motor and Gearbox
Utilizing advanced European technology, the motor and gearbox are seamlessly integrated. The helical gear transmission ensures stable, reliable, and smooth operation, even for heavy doors, without compromising on performance.

4. Versatility and Adaptability
The motor is designed to power a wide range of automatic doors, including sliding, swing, curved, folding, hermetical, telescopic, panic, and revolving doors. Its application extends to numerous environments, such as hotels, hospitals, shopping malls, banks, and office buildings.

5. Applications:
The 4008 Brushless DC Sliding Door Round Motor is versatile enough to be applied in:

Automatic Sliding Doors
Swing Doors
Curved and Folding Doors
Hermetical and Telescopic Doors
Revolving Doors
It is also suitable for environments like hotels, hospitals, shopping malls, banks, and commercial office buildings, making it ideal for both commercial and public spaces.
