Custom 4002 Intelligent Encoder Electric Door Motor For Hotels

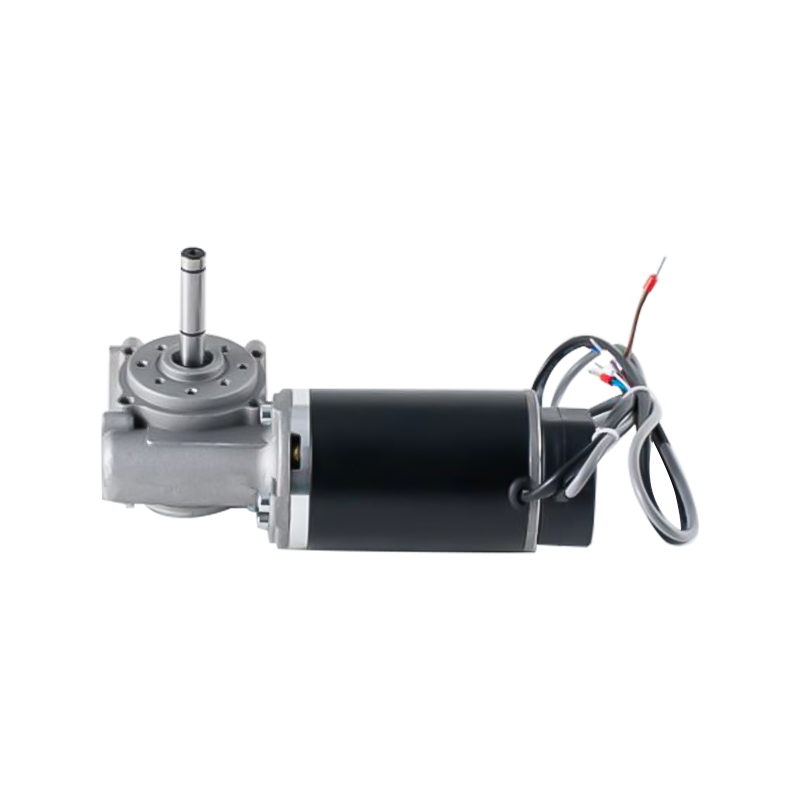

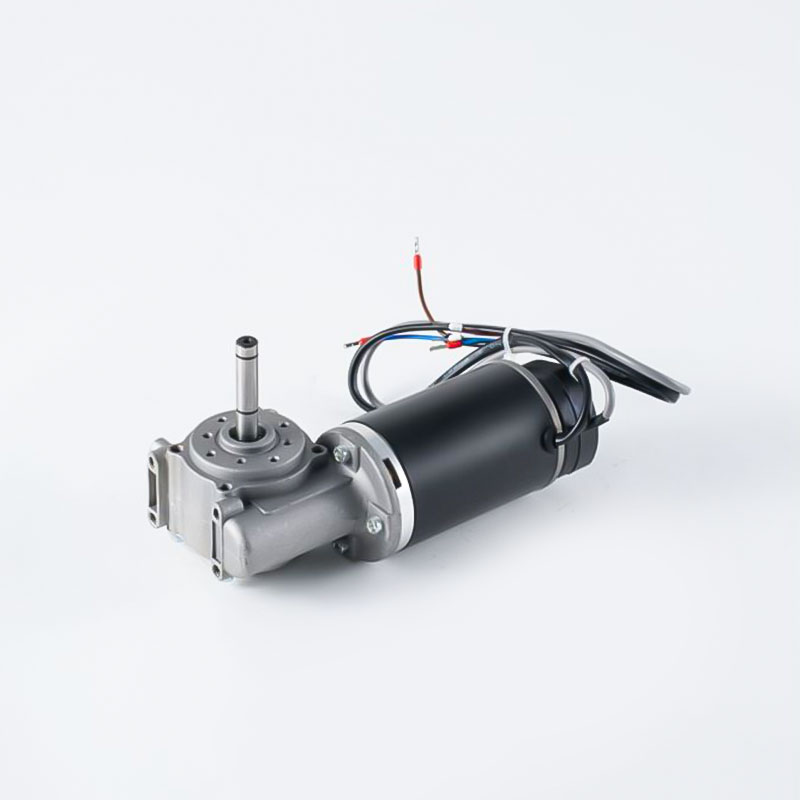

4002 Intelligent Encoder Electric Door Motor For Hotels
Factory model:

4002 Intelligent Encoder Electric Door Motor For Hotels

Rated Voltage

 24V DC

Rated Power

 60W

Rated Speed

 220rpm

No-load Speed

 240rpm

Reduction Ratio

 15:1

Protection Level

 IP44

Motor Noise

 ≦55dB

Contact Us
  • 4002 Intelligent Encoder Electric Door Motor For Hotels
  • 4002 Intelligent Encoder Electric Door Motor For Hotels
  • Details
  • Inquire

Overview:
60W brushed DC motor, worm gear reduction, with photoelectric encoder, single signal 40ppr, precise control, stable operation, low noise, suitable for automatic sliding doors in hotels and shopping malls.

Features:
1. DC brushed motor, 60W 24V, bidirectional rotation, low operating noise
2. Small size, good stability, anti-aging, high and low-temperature resistance
3. Worm gear transmission, high transmission efficiency, large output torque
4. With encoder 40ppr, single signal output, precise control of door opening and closing speed

Description:
The 4002 Intelligent Encoder Electric Door Motor is a cutting-edge solution designed for high performance and reliability in demanding environments such as hotels, hospitals, shopping malls, banks, and commercial office buildings. This motor exemplifies modern design principles and advanced technology to ensure seamless operation, robustness, and ease of maintenance.

Design and Construction:

Heavy-Duty Construction: The 4002 motor is specifically engineered for heavy doors, utilizing modern design elements that ensure durability and performance. It incorporates a global-trusted high-power brush motor and new mechanical components, providing reliable and long-lasting operation.

High-Strength Hanger Materials: The motor features hangers made from imported high-strength nylon, capable of supporting loads of up to 2X150kg. This material choice enhances the motor's ability to handle heavy doors with ease, contributing to its suitability for large accesses and industrial environments.

Advanced Driving Device: The driving device of the 4002 motor has undergone rigorous testing to ensure optimal performance. This new design integrates seamlessly with the motor's components, facilitating smooth operation, straightforward installation, and effortless maintenance.

Mechanism and Operation:

Gear Motor Technology: At the core of the 4002 motor is a sophisticated gear motor system. This system utilizes magnetic current—produced by either permanent magnets or electromagnets—to drive gears housed within a gear reduction unit or an integrated gearbox. The gears play a crucial role in amplifying the motor's torque while simultaneously reducing its output speed.

Enhanced Torque and Efficiency: The integration of gears significantly boosts the motor's torque capabilities, allowing it to handle heavier loads without drawing excessive current. Although the motor operates at a slower speed, its increased torque ensures efficient performance and longevity.

Applications:

Versatile Use: The 4002 Intelligent Encoder Electric Door Motor is designed for automatic sliding doors across various settings. Its versatility makes it suitable for diverse applications, including:
Hotels: Ensuring smooth and quiet operation for guest convenience.
Hospitals: Providing reliable door functionality in high-traffic areas.
Shopping Malls: Managing frequent door use with durability and efficiency.
Banks and Commercial Buildings: Offering secure and efficient access control.

Competitive Advantages:

Advanced Control System: The motor is supported by intelligent Honeywell software, which features self-learning capabilities for stroke adjustments. This advanced control system enhances operational precision and adaptability to different door sizes and types.

Integrated Brush Motor and Gearbox: The 4002 motor combines the brush DC motor with a worm-reduction gear, resulting in higher efficiency, greater torque, and an extended lifespan. This integration reduces the need for separate components and streamlines maintenance.

Low Noise Operation: Precision manufacturing and direct driving design minimize operational noise. The motor's quiet performance enhances user experience and is ideal for noise-sensitive environments.

Automatic Locking Feature: The motor is equipped with an automatic locking mechanism that engages if no triggering signal is detected. This feature ensures that doors remain securely shut, even in the absence of constant activation.
